IgentDraw – implementation of users remarks

Skip side cover on bottom edge in case of wall

Improved functionality of the option <Bar extension beyond the top edge> for walls with different levels of the top edge (plates at different levels)

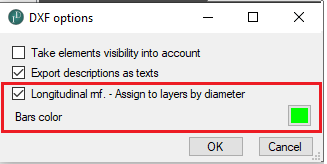

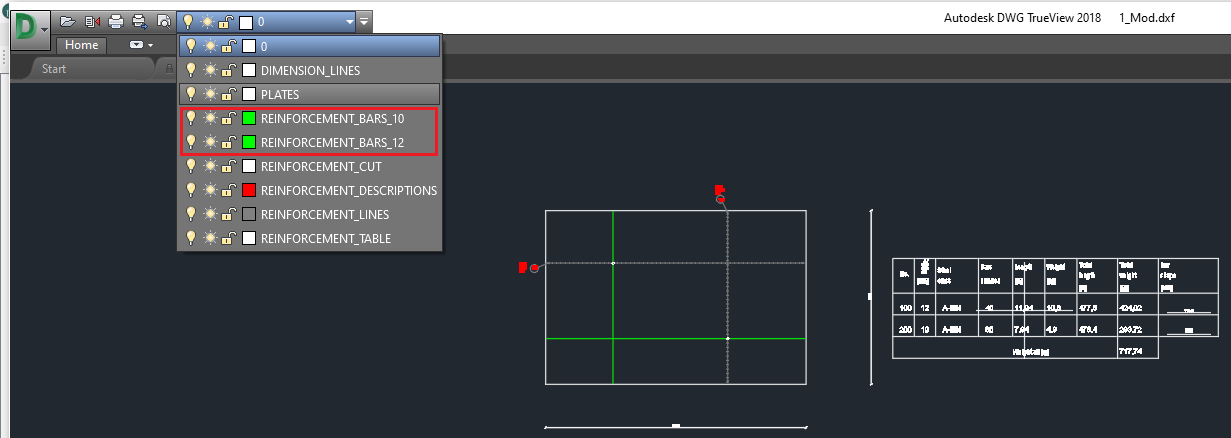

Possibility to assign longitudinal bars of different diameters to different layers when exporting to DXF

Possibility to select the color of bars when exporting to DXF
